ICG Isothiocyanate

Catalog No. POI1616
PACKING UNIT

price

Lead time
1 mg $523.00
5 mg $1,822.00
25 mg $6,783.00
  • option

Total

$0

Description

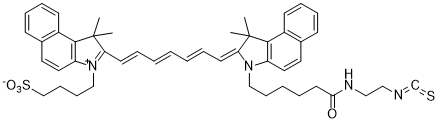

ICG Isothiocyanate is an amine-reactive form of near infrared (NIR) fluorescent dye and used to generate a stable fluorescence signal in bioimaging. NIR fluorescence allows to observe the deep image from the surface of skin and being utilized in a wide range of research fields. The maxima of Ex/Em values are at 785/812 nm. ICG might be excited using 750-800 nm laser line or LED and displays excellent optical property. Isothiocyanates are moderately reactive but quite stable in water and most organic solvents. Isothiocyanates react to primary amine to form reasonably stable thiourea linkage. Whereas labeling of protein with NHS esters can typically be done at pH 8.3, conjugation for isothiocyanates usually require pH above 9. We offer ICG isothiocyanate for labeling of antibodies, peptides, proteins, ligands, and amplification substrates optimized for cellular labeling and NIR imaging.

Specifications

Fluorophore: ICG

Reactive group: Isothiocyanate

Excitation/Emission Max.(nm): 785/812

Extinction coefficient: ≥ 78,000 cm-1M-1

CF280: 0.05

Appearance: Green Solid

Molecular Weight: 815.10 g/mol

Solubility: DMF, DMSO

Storage conditions: -20 ℃, protect from light



Citation & Reference

1. Masashi Gotoh. Development of a canine model of pulmonary emphysema and imaging of the emphysematous lung with infrared thoracoscopy. J Thorac Cardiovasc Surg 126.6 (2003): 1916-21.


2. Aaron M. Mohs. An integrated widefield imaging and spectroscopy system for contrast-enhanced, image-guided resection of tumors. IEEE Trans Biomed Eng 62.5 (2015): 1416-24.


3. Mohammed Hassan. Near Infrared Fluorescence Imaging with ICG in TECAB Surgery Using the da Vinci Si Surgical System in a Canine Model. J Card Surg 27.2 (2012): 158-162.


4. R. C. Benson. Fluorescence properties of indocyanine green as related to angiography. Phys Med Biol 23.1 (1978): 159-63.


5. Mitsuharu Miwa. The Principle of ICG Fluorescence Method. The Open Surgical Oncology Journal 2 (2010): 26-28.
